TNBG SJSSAA - 11KV Power Supply Relocation Works for Coal Handling Plant.

Saftech was awarded a contract work from TNBG SJSSAA for the relocation of 11KV Supply from District Sub Station to Phase III 11 KV Station Board-B for the 3.3KV Coal Handling Plant. Works is expected to start around mid April 2003 and expects to be completed by end of July 2003. Main contractor is Instrutech Engineering.

Scope of works are as follows:-

bullet

Supply, install and Testing of new 11KV HV Cable including control cables.

bullet

Modification of VDU Graphics for CECR and UCR Phase 3.

bullet

Testing & Commission of 11KV Station Board and 3.3KV Board.

bullet

Provide license tester (approved by JBE) for protection relays and dielectric test for HV cable.

bullet

Provide license jointer for the termination of HV cables.

bullet

Modify and implement 11KV and 3.3KV interlocking protection scheme.

bullet

Modify logic for 11KV Board at Bailey I-90 System.

bullet

Modify data communication configuration for CMAC monitoring system.

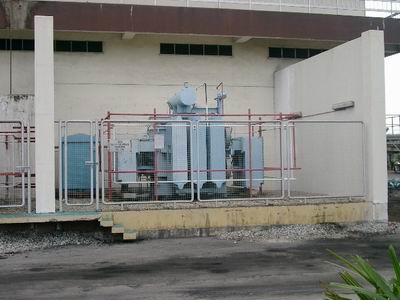

Project Photos (Click on photo for detail)
